Microwave Absorbers - Dielectric Foam

FB005-1250 - Dielectric Foam Microwave Absorber

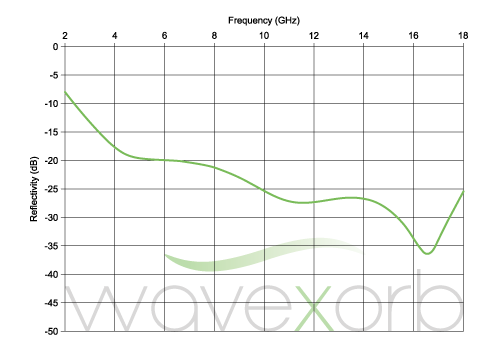

Wavexorb Dielectric Foam Absorbers are lightweight, conductive carbon loaded materials which provide high levels of loss at all angles of incidence. Dielectric Foam Absorbers are effective in free space applications such as radomes or antennae. Wavexorb Dielectric Foam Absorbers are an economical solution, and provide broadband performance in a frequency range of 1GHz to 40 GHz.

[...] = OPTIONAL

(-01) 24" x 24" (609mm x 609mm)

(-02) 12" x 24" (305mm x 609mm)

(-03) 12" x 12" (305mm x 305mm)

[-A] Add -A for PSA backing

Material: Polyether Reticulated Foam
Color: Black
Thickness: 1.250" (31.75 mm)
Adhesive: 0.005" (0.13 mm)
Temp Range: -60°F to 250°F
(-51°C to 121°C)
RoHS Compliant
Contains no halogens
